Grate for Extraction of Retreated Air [Architectural sketch]
Collection:CSM Museum & Study Collection
Date: 1870s - 1920s
Maker: William Richard Lethaby (1857-1931)
Dimensions:
Image: 275 x 185 mm (27.5 x 18.5 cm)
Sheet: 323 x 203 mm (32.3 x 20.3 cm)
Medium: Pencil on laid paper
Object number: F.145.2

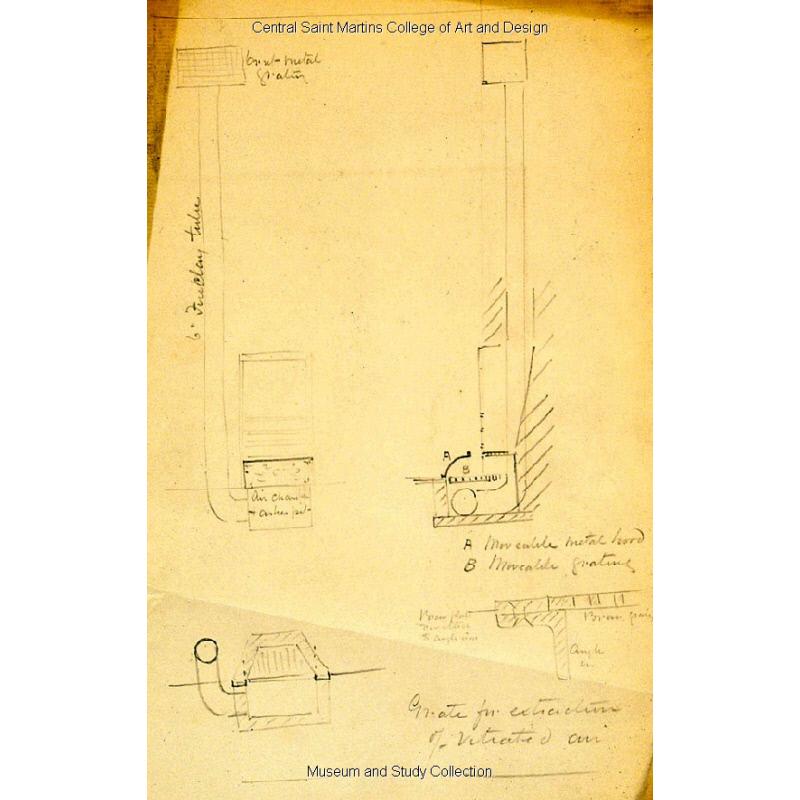

DescriptionThis drawing seems to be a design for some kind of air conditioning unit or purifier. Shows 1) front elevation 2) side elevation and 3) a plan from above. This is most likely a design for a commercial building or offices of some kind. As with F.145.1, there is a vague possibility that this may have been a sketch for the Eagle Insurance Building in Birmingham.
